OM.3.2 AVB
OM.3.2 AVB Models
| Model | 3200 – 07 | 3200 – 10 |
|---|---|---|
| Lifting Capacity (kg) | 3200 | 3200 |
| Working Class | FEM 2m | FEM 2m |
| Lifting Speed- Twin Speed (m/min.) | 0,6 / 3,9 | 0,6 / 3,9 |
| Travelling Speed (m/min.) | 5 / 20 | 5 / 20 |
| Lifting Motor Power (kW) | 0,37 / 2,5 | 0,37 / 2,5 |
| Travelling Motor Power (kW) | 0,55 | 0,55 |
| Rope Diameter (mm) | 8 | 8 |
| Reeving | 4 / 1 | 4 / 1 |
OM.3.2 AVB Models
| Model | 3200 – 07 | 3200 – 10 |
|---|---|---|

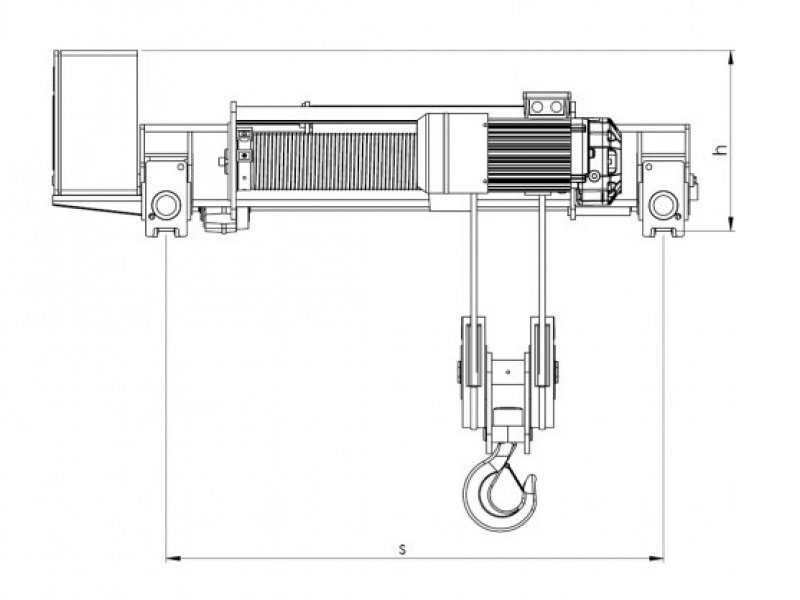

| h (mm) | 450 | 450 |
| s (mm) | 1200 | 1400 |

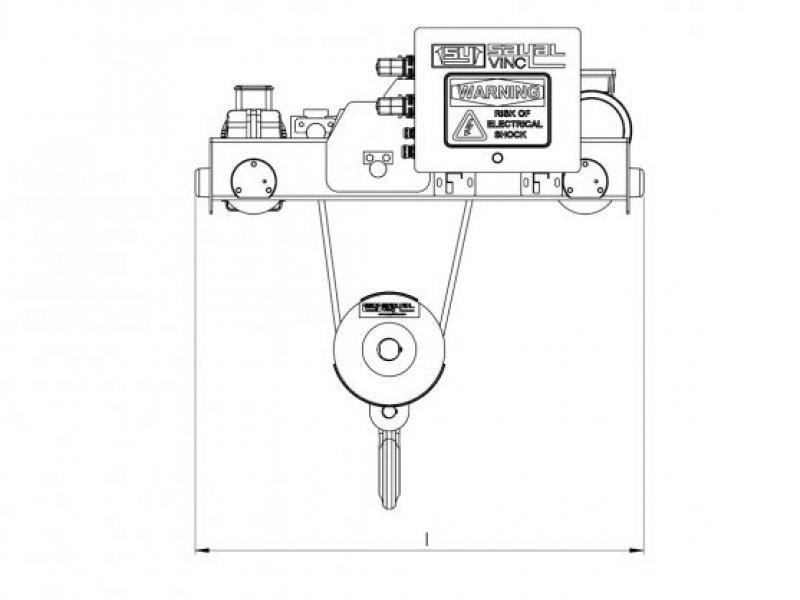

| l (mm) | 1100 | 1100 |

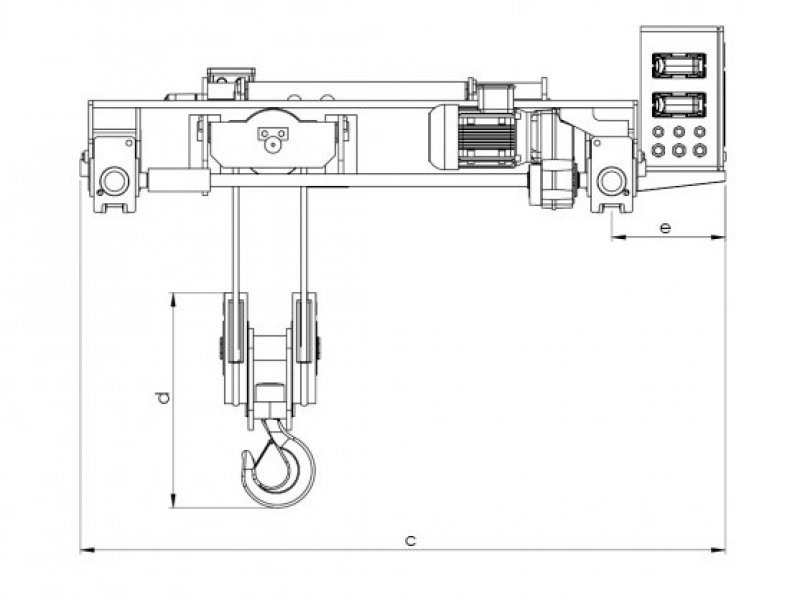

| c (mm) | 1550 | 1750 |
| e (mm) | 300 | 300 |
| d (mm) | 530 | 530 |
